Dimensions

Length: 9.65m | Width: 3.5m | Height: 2.2m

Specifications

Specifications vary depending on which agility elements are selected, however typical climbing cube components have the following:

  • Single log machine-rounded poles pressure-treated with non-arsenic preservative, impregnated with wax, sanded for a smooth finish and secured into the ground with concrete footings.
  • Vertical poles: 14cm diameter.
  • Timber fixings are secured with high tensile bolts with a shear strength of 13.3 kilonewtons and pull out strength 5.45 kilonewtons.
  • 16mm diameter steel wire reinforced multi-filament polypropylene rope.
  • End fixings are typically M12 hot dipped galvanised drop forged eyebolts.
  • Super tough nylon thimbles.
  • Hydraulically swaged aluminium ferrules.
  • Balance Beam: 1 x 16cm diameter quarter-sawn timber flattened on top and bottom supported on two upright posts.
  • Stepping Logs Columns: 18cm diameter timber pressure-treated and impregnated with wax.

Connected Double Cube

SKU: CP-BOX-2

Agility Cubes – Fun, Challenging, and Built to Last

The Agility Cube range is designed to bring excitement, movement, and skill-building to any playground.

Our Standard Agility Cube combines four different traversing trail elements arranged in a compact square formation. It’s ideal for encouraging balance, coordination, and confidence in children of all ages.

Standard cube includes:

  • Cross Wires

  • Hanging Rope Traverse

  • Hanging Log Steps Traverse

  • Traversing Net

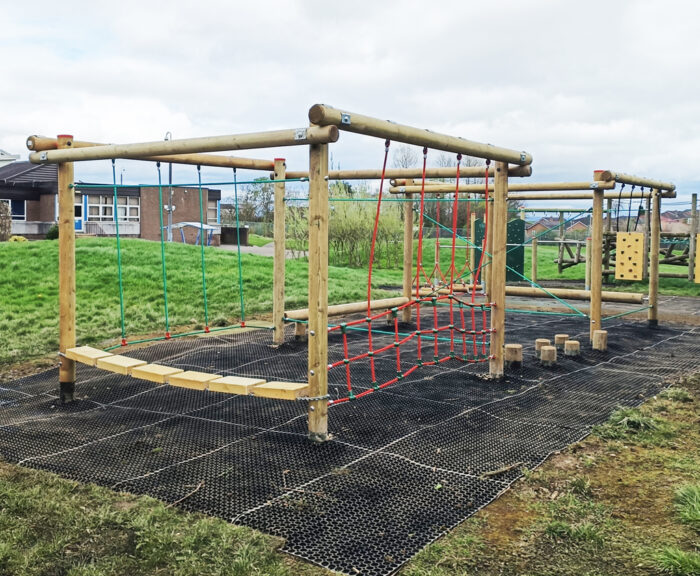

Connected Double Cube

Take playtime to the next level with the Connected Double Cube – two Agility Cubes joined together to form a larger, more adventurous structure. The cubes are linked using five Stepping Log Columns and a Balance Beam, creating even more opportunities for fun and physical development.

Designed for School Playgrounds

Perfect for schools with limited space, these compact designs reduce the need for extensive safety surfacing as they aren’t spread out in a line. Install on a tarmac area with rubber surfacing to ensure all-year usability, even when fields are wet or muddy.

Built to Last

Every detail is crafted for durability and safety:

  • Quarter-sawn and sanded poles for a smooth, splinter-free finish.

  • Heat-sealed bitumen sleeves on in-ground timbers to prevent rot and extend product life.

These thoughtful touches make our play equipment strong, safe, and long-lasting.

Customisable Elements

Want to make your cube unique? Choose from a variety of alternative agility features:

  • Floating Steps

  • Monkey Bar Rings

  • Parallel Wires

  • Rolling Log

  • Hanging Tyres

  • Weaving Ropes

Our team will recommend the best combination of elements to suit the age group, ability, and space available – ensuring the structure is both challenging and achievable for every child.

CP-BOX-2 – Connected Double Cube – Info Sheet

Get in Touch

For prices, design advice, and more details, contact our friendly team:
sales@caledoniaplay.com
01577 840570
