Traversing Wall (Wall Mounted) : CP-TVW(E)

Description

The Traversing Wall (Wall Mounted) offers a physical challenge as children move along the wall using only hand and foot grips. These have been placed in such a way that it is not possible to gain much height.

The Traversing Wall is constructed from a timber frame and tough dark brown slip-resistant birch plywood boards with large wire mesh pattern. The upright timbers are concreted into the ground and fitted with Postsaver sleeves.

The specially designed coloured rock climbing holds are suitable for both hands and feet to use. Excellent for developing upper and lower body strength and coordination.

Due to the height of the foot holds safety surfacing is not required. Where installed on grass we would suggest the use of Grass Safety Mats around the product to prevent ground erosion.

Where installed on tarmac a 20mm rubber wetpour surfacing can be laid to a distance of 1.5m around the product.

This is a good solo activity however teamwork can also be encouraged as children help each other by guiding their feet and giving assistance.

The size can be made to suit the space in 1.2m multiples. As a guide a 3.6m double-sided freestanding wall starts at ÂŁ3,025.00, and 3.6m single-sided freestanding wall starts at ÂŁ1,875.00

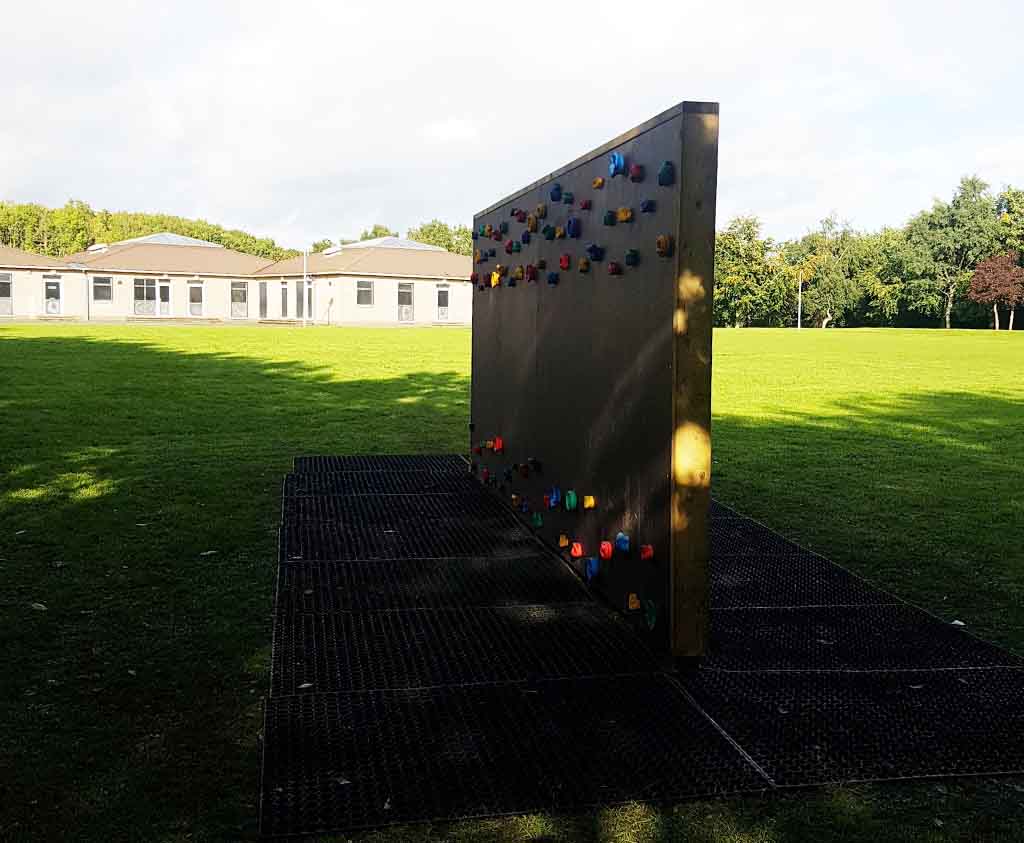

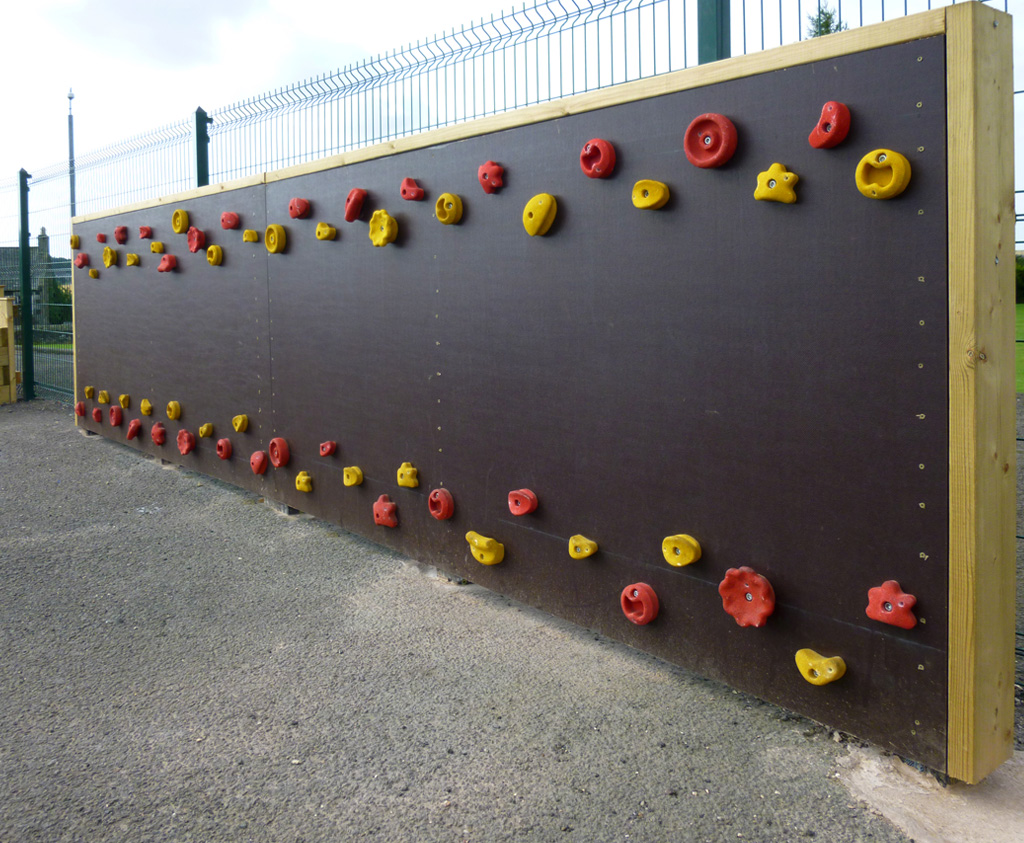

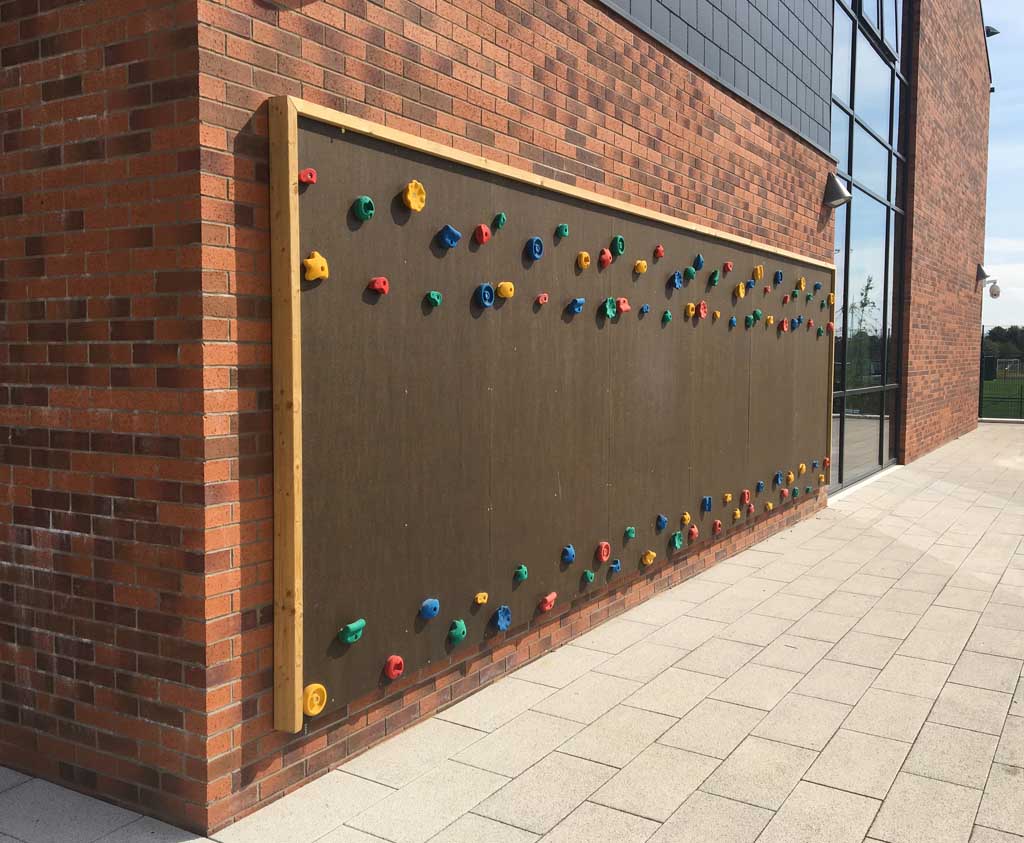

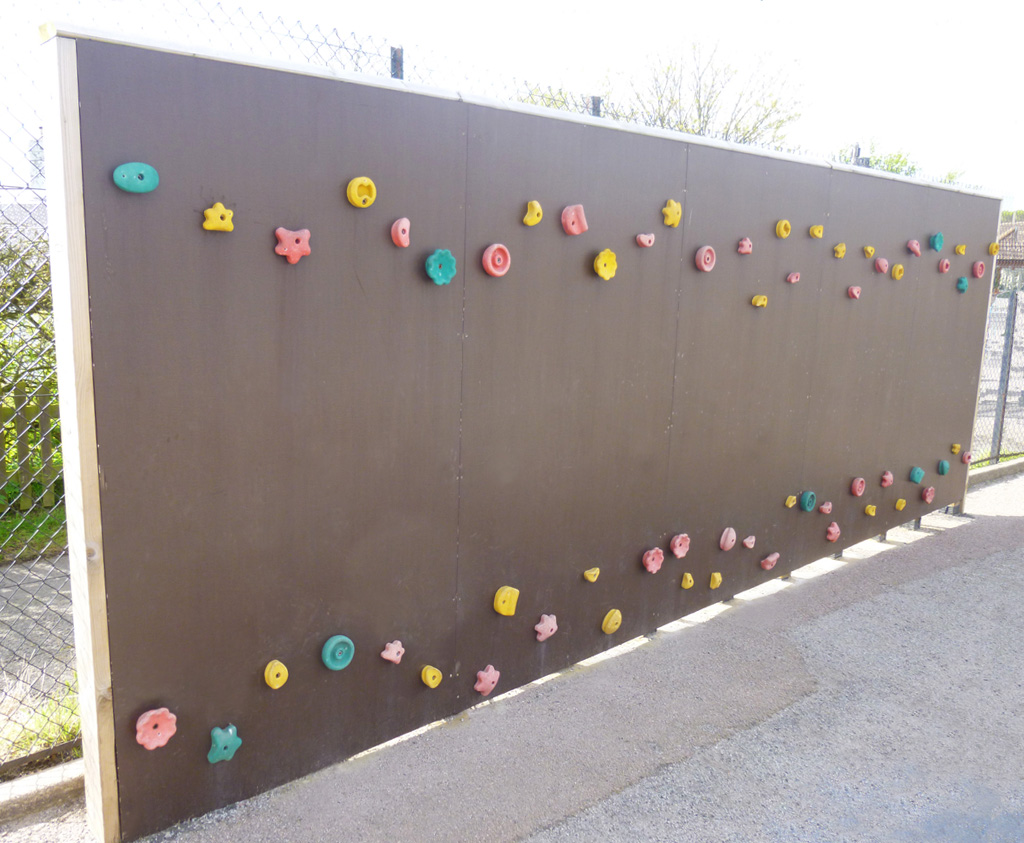

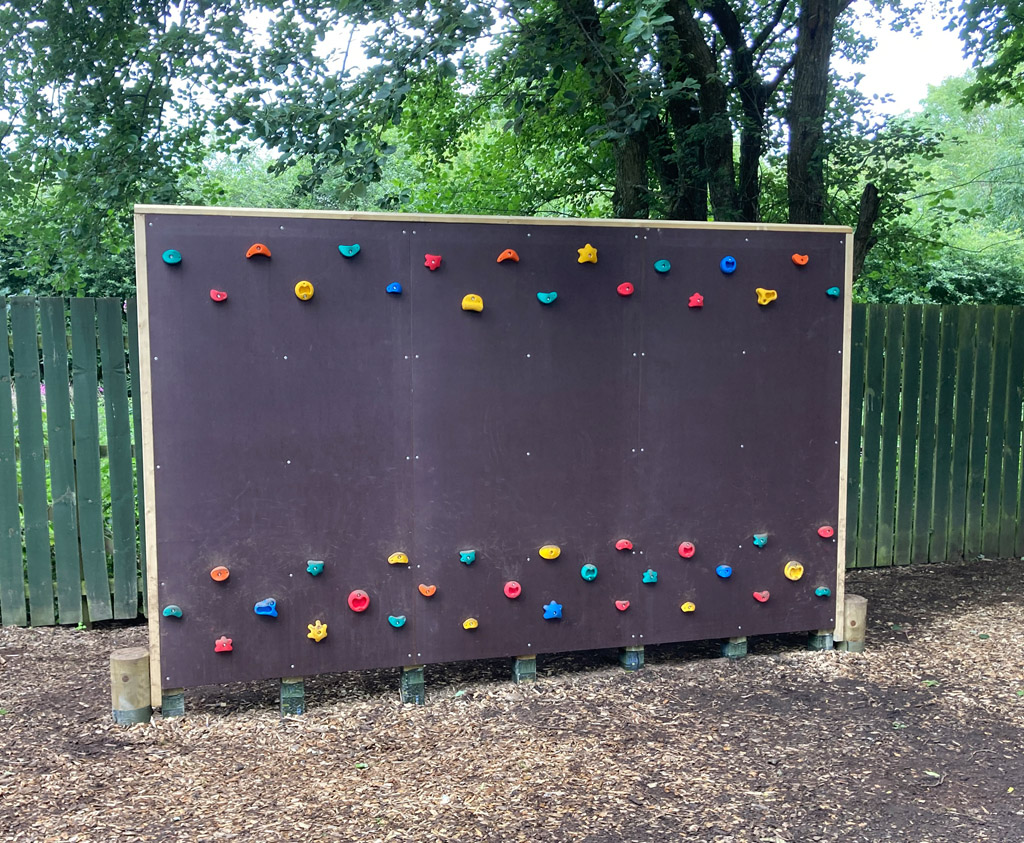

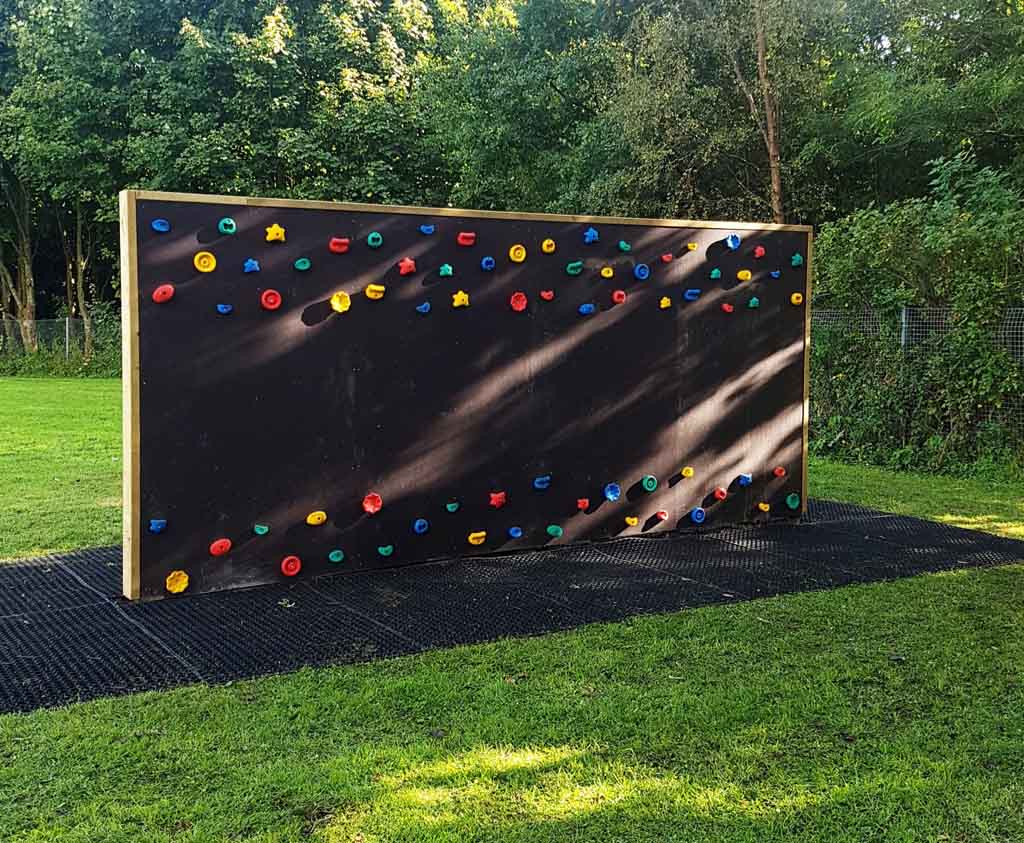

Images show the product as Freestanding and Wall mounted.

Please call the sales team for clarity.

This product is a good standalone feature product for a commercial organisation to increase footfall and offer something a little bit more unusual.

Please contact sales@caledoniaplay.com for more information on delivery and installation details, times and prices for your school.



Specification

18mm external plywood with a black ware surface supported by a timber frame concreted into the grounds or attached to existing fence line
timber frame is constructed of 10 x 10cm posts with heat sealed post saver sleeves that will keep the causes of ground rot out and the preservative in making the product last longer
beveled edge on top of the posts and the plywood sheets to shed water

poly resin rock climbing holds in red, green, yellow and blue colour with metal washer inserted
hand and foot grips positioned approximately 30cm apart, foot grips not exceeding 0.5m off the ground  8 – 12 grips per linear metre
high tensile timber locking bolts
timbers are sourced from sustainable managed forests with FSC or PEFC chain of custody certificates

boards used are tough dark brown, slip-resistant birch plywood with large wire mesh pattern and a phenolic film surface





Dimensions

boards positioned 100mm off the ground

height: 2.3m

board width: 1.2m

product length will be as required and in 1.2m multiples depending on space available
