Hanging Tyres : CP-THT(C)

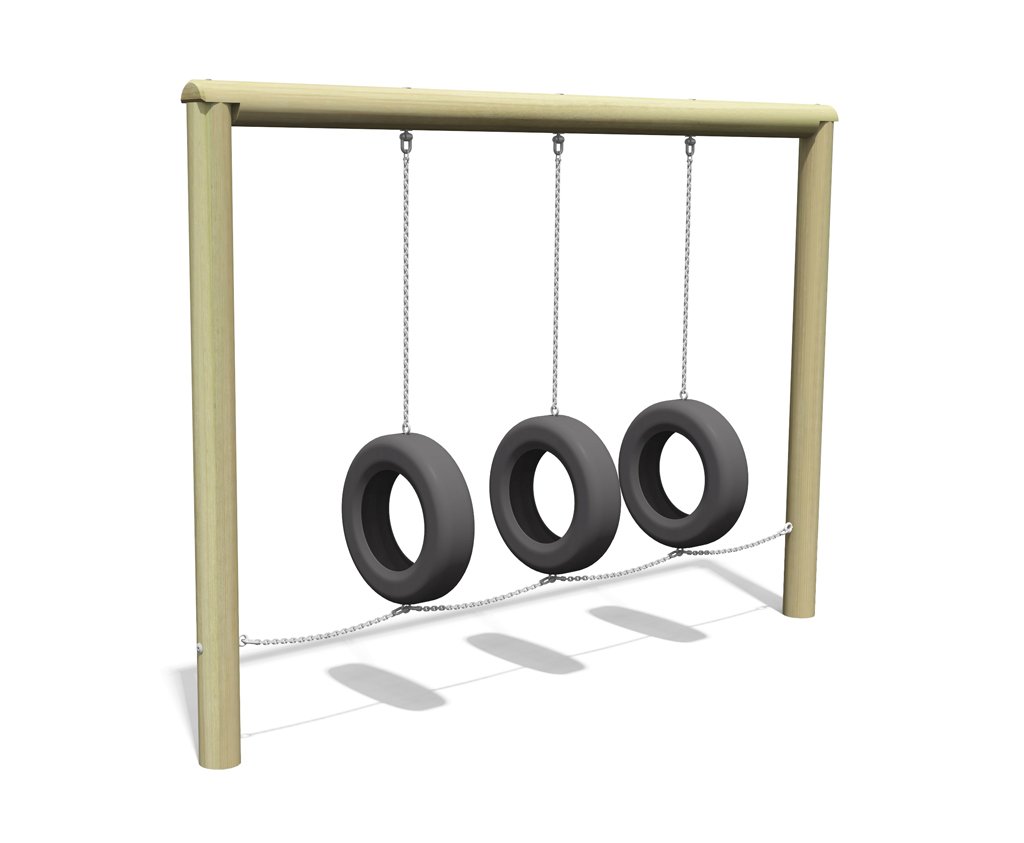

The Hanging Tyres are supplied as a set of three tyres suspended from a horizontal top beam.

The tyres are joined together at the base with a chain.

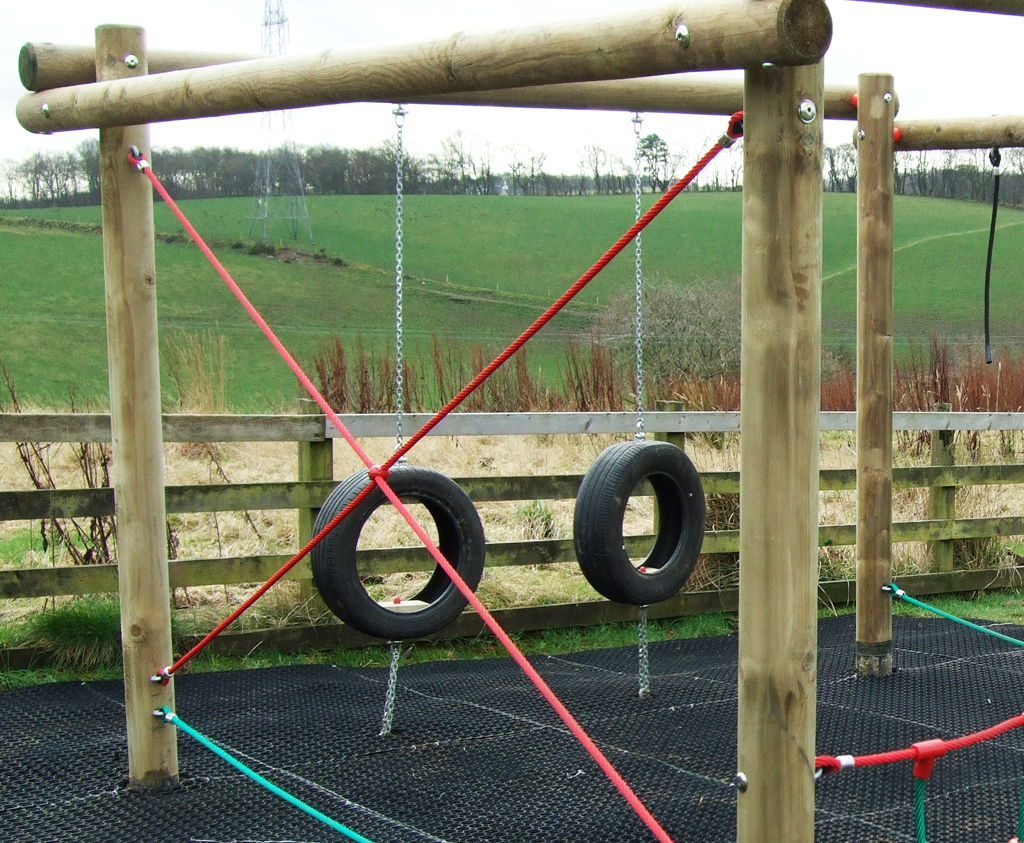

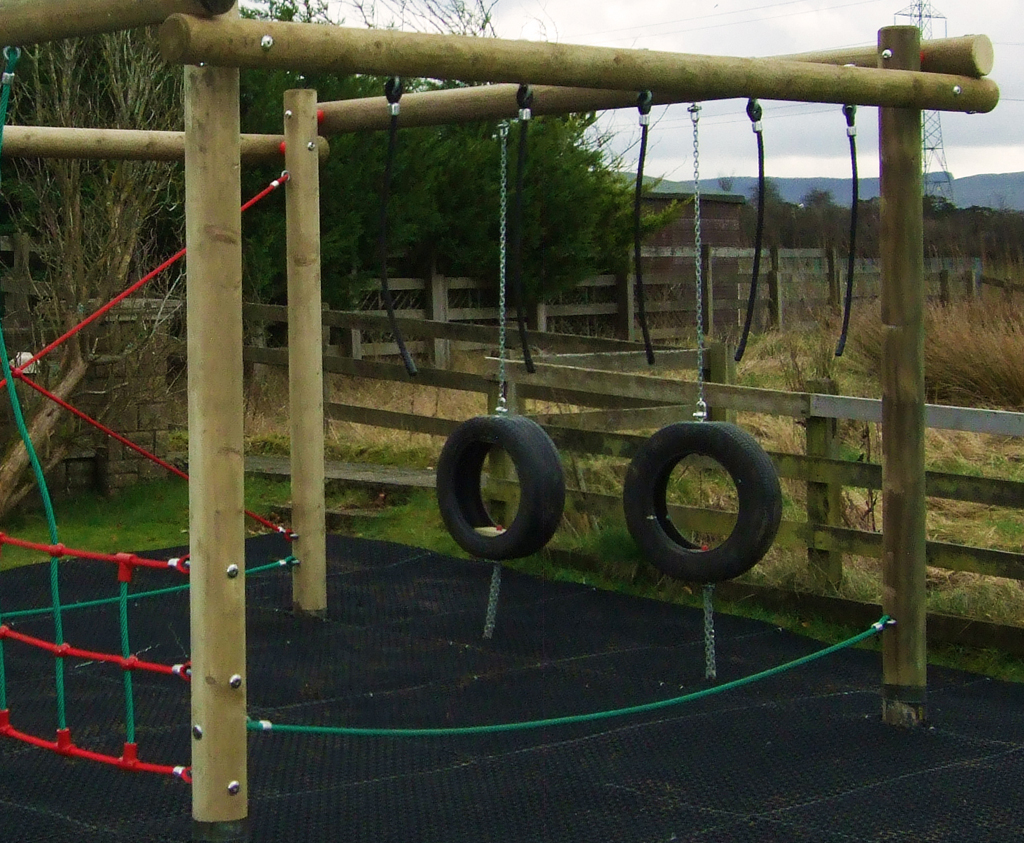

Some of the gallery images show the two-tyre configurations with the former method of installation – a chain coming from each tyre and going down to the ground.

The timbers used are quarter sawn, pressure treated and impregnated with wax, providing a more repellent surface so reducing water absorption and delaying future rotting of the timber.

We also fit Postsaver sleeves at the ground line section of all timber posts that are extended into the ground. This will keep the cause of ground rot out and the preservative in, ensuring that the new piece of equipment will last for many years.

We recommend using Grass Safety Mats at key points under and around this product to minimise ground erosion.

Please get in touch with our sales team for more information: sales@caledoniaplay.com or alternatively call 01577 840570 to chat to somebody about this product.

If you would like to keep in touch with Caledonia Play then why not follow us on social media – we post regularly about what’s been going on and enjoy receiving your feedback even if it is only a ‘thumbs up’ on one of our pictures!




three recycled tyres

stainless steel chains, fixtures and fittings

machine-rounded poles pressure-treated with non-arsenic preservative, impregnated with wax and secured into the ground with concrete footings

vertical poles: 14cm diameter

top pole: 14cm diameter

16mm Herculean rope with sealed eyelets secured with locking shackles

timber fixings are secured with high tensile bolts with a shear strength of 13.3 kilonewtons, pull out strength 5.45 kilonewtons


height: 2.5m

width: 3.0m
